Vintage 8274 winch

Cable winch TW 10,000

Winch King One 9.5 Black edition

TIBUS high-performance cable winch

With our TIBUS high-performance cable winches, the drum is largely protected by special shaft seals against the ingress of dirt and water and against the escape of grease and oil.

For the TIBUS high-performance cable winches, we only use parts that are constantly subjected to strict quality controls. All bearings are from well-known manufacturers. We only use electric motors and relays from well-known manufacturers that have been known for their reliability for many years and that we regularly and extensively test.

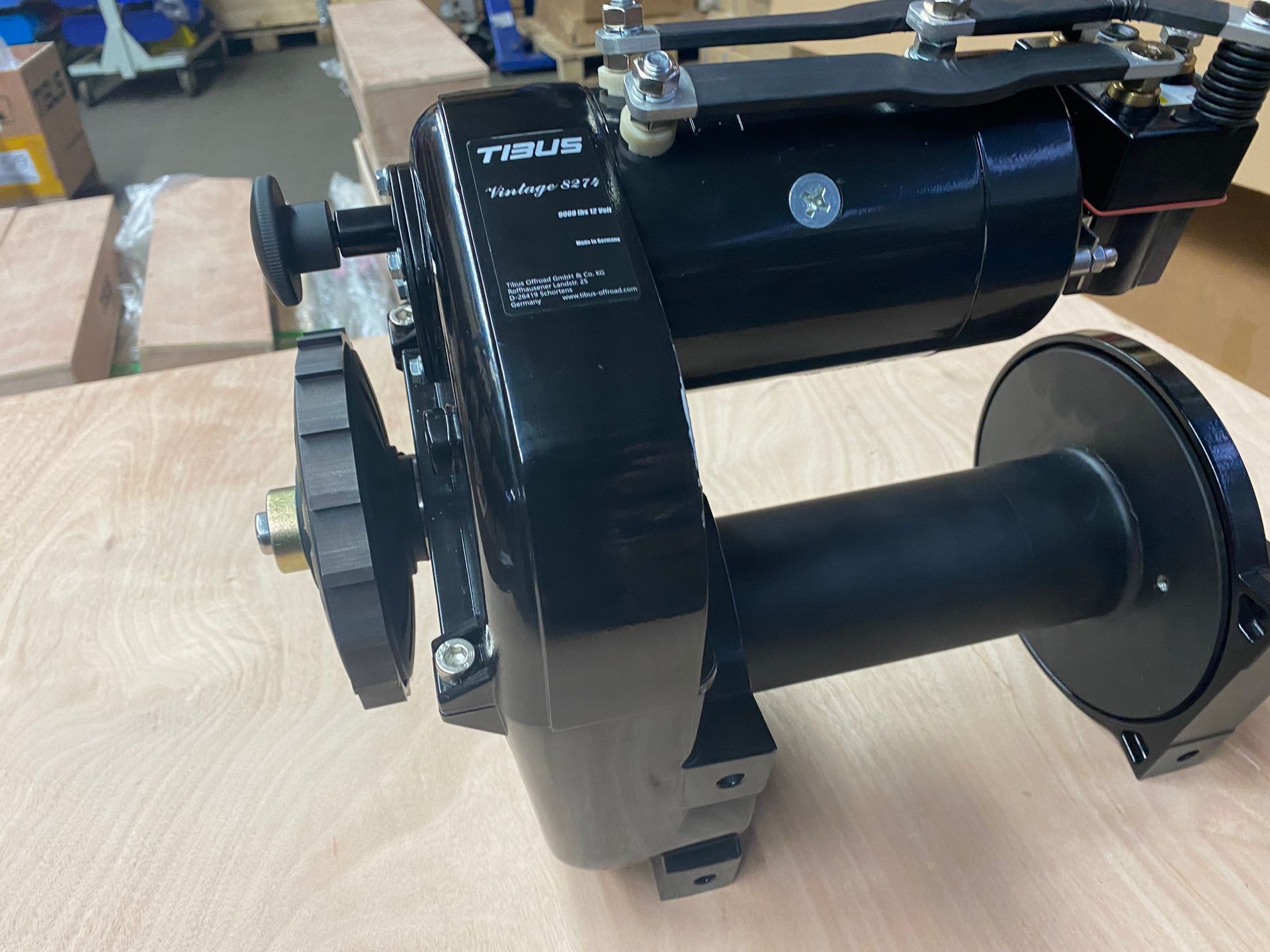

Vintage 8274 winch

Vintage winch 8274 from TIBUS at an unbeatable price of only

1,750 euros

• Up to 50% faster at full load - compared to the normal M8274

• 4536kg maximum towing capacity (normal 3629kg) ideal for heavier vehicles

• 45m x 10mm easy to handle synthetic rope

• Machined 6061-T6 aluminum fairlead

• IP68 sealed Albright contactor

• Two large bearings on the gear wheel reduce wear

• A reinforced brake shaft secured with a screw for high durability
• All parts interchangeable with the Warn 8274
• Reinforced brake pads for safe abseiling
• all gears made of reinforced CR40 steel
• all spare parts available quickly
• All parts can also be used for the Warn 8274


Cable winch TW 10,000 complete with synthetic cable, remote control, aluminum cable window

at a price of 890 euros

This winch features a 6.8 HP motor for a maximum pulling power of 4.5 tons

The cable speed is 18m/min without load

Rope length 27m

Rope diameter 9.5mm

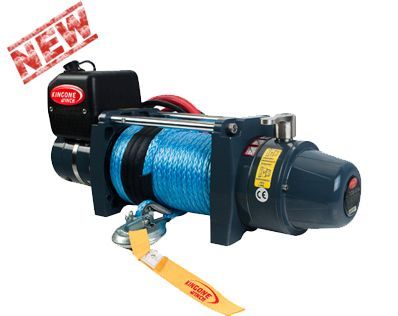

 TDS-9.5HC SR

Preis von 980 Euro

• Heavy duty series wound motor delivers superior torque output and faster line speed.
• 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
• Automatic, double cone brake.
• Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
• Installation, operation and maintenance with ease.

SPECIFICATION   Line pull:4,309kgs/9,500lbs

 Motor: 12V/5.2HP 24V/3.2HP

 Gear Train: Three stage   Gear Ratio: 156:1

 Freespooling Clutch: Rotating ring gear

Synthetic Rope Size: Φ11/31"×90'(Φ9.0mm×27m)

Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)

       LINE PULL   Layer of Wire Rope Max Line Pull   1 9,500lbs/4,309kgs   2 7,800lbs/3,500kgs   3 6,550lbs/2,977kgs   4 5,700lbs/2,578kgs
        LINE SPEED AND AMP DRAW(1st layer of Synthetic rope on the drum)

Load Line Speed AMP Draw(12V) AMP Draw(24V)

 No Load 59FPM/18MPM 60 40   2,000lbs/907kgs 15.4FPM/4.7MPM 150 116   4,000lbs/1,814kgs 13.1FPM/4.0MPM 187 168   6,000lbs/2,722kgs 11.2FPM/3.4MPM 246 220   8,000lbs/3,650kgs 9.5FPM/2.9MPM 314 260   9,500lbs/4,309kgs 8.2FPM/2.5MPM 370 300
